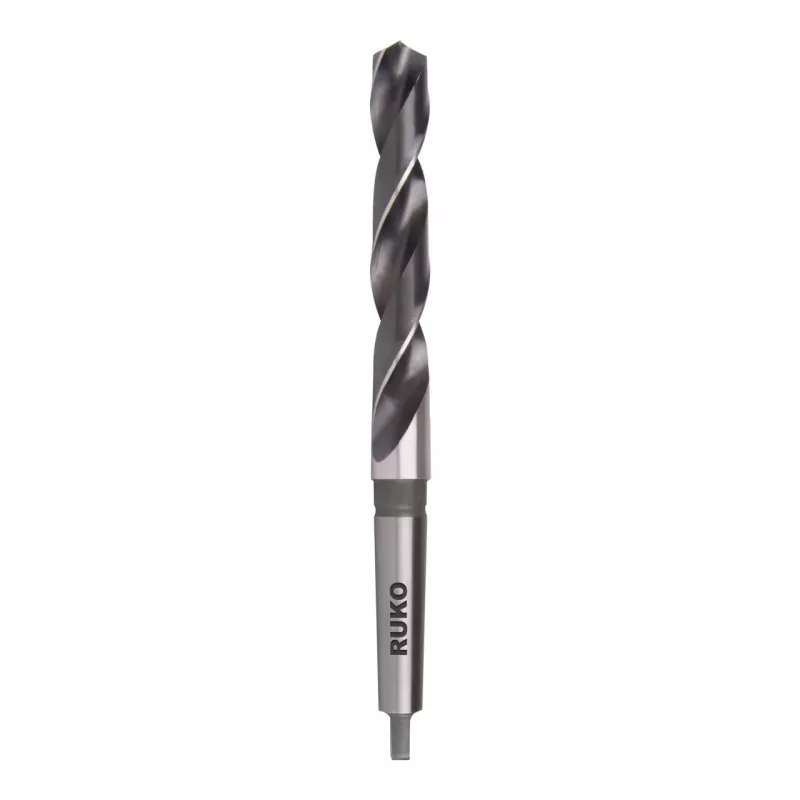

RUKO SPB-DIN345 38,0 mm HSS Morse taper drill bit MT4

Morse taper drill bit with a 38.0 mm diameter, engineered for heavy-duty drilling in steel, cast iron, non-ferrous metals, and plastics. Its MT4 taper shank provides a secure, self-locking fit in machine spindles, delivering high torque transmission for demanding industrial applications.

Advantages

Ground from solid High-Speed Steel (HSS) with a bright finish, this drill bit offers excellent cutting performance and durability. The 118° point angle ensures efficient chip formation and reduced cutting forces, while the right-hand cutting direction suits standard drilling operations.

Suitable for

• General purpose drilling in steel and cast iron
• Non-ferrous metals and plastics
• Machine tools with MT4 spindle taper

Key specifications

• Drill diameter: 38.0 mm
• Morse taper size: MT4
• Overall length: 360 mm
• Flute length: 215 mm
• Material: High-Speed Steel (HSS)
• Standard: DIN 345
• Point angle: 118°
• Surface finish: Bright (uncoated)
• Cutting direction: Right-hand
• Tolerance: h8

Recommendations

For optimal results, use with appropriate cutting fluid and ensure proper machine rigidity. Suitable for use in radial drills, pillar drills, and machining centers with MT4 taper.
